ODR Oil Cooled & Explosion Proof
Cathodic Protection Rectifiers

Rugged smaller rectifiers for lower output applications under severe conditions
Maximum 200 watts & 20 amps single phase

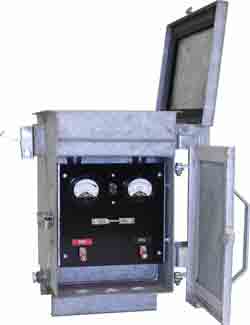

Type "ODR" Standard

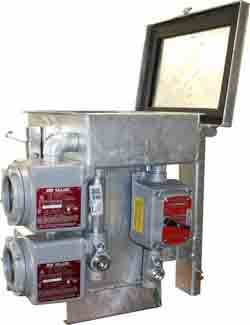

Type "ODR" Explosion Proof

Standard Features
ODR Oil Cooled & Explosion Proof

• Weatherproof to NEMA 3R.

• Heavy duty 11 gauge hot dip galvanized cabinet with hinged top lid and stainless steel hardware.
• Heavy duty, draw-pull, stainless steel cabinet latches.

• Wall mount, Pole mount, or Pad mount

• Separate instrument compartment with hinged door and stainless steel hardware.

• Lift-out component rack for the transformer and rectifier stack.

• Heavy duty transformer with 15% overdesign for reserve capacity.

• Minimum 18-step voltage control terminal strip taps.

• 3/16” Grade XX, Phenolic panels

• AC Input circuit breaker

• Magnetic AC secondary circuit breakers (instead of fuses)

• Hoyt, separate analog, 2-1/2” round, volt and amp meters

• Silicon diodes protected by surge suppressors and current limiting breakers

• All electrical connection hardware is Nickel Plated and double-nutted or soldered

• Multi-strand, high temperature, insulated flexible wiring

• Terminal block for AC input wires (Non-Hazardous models only)
